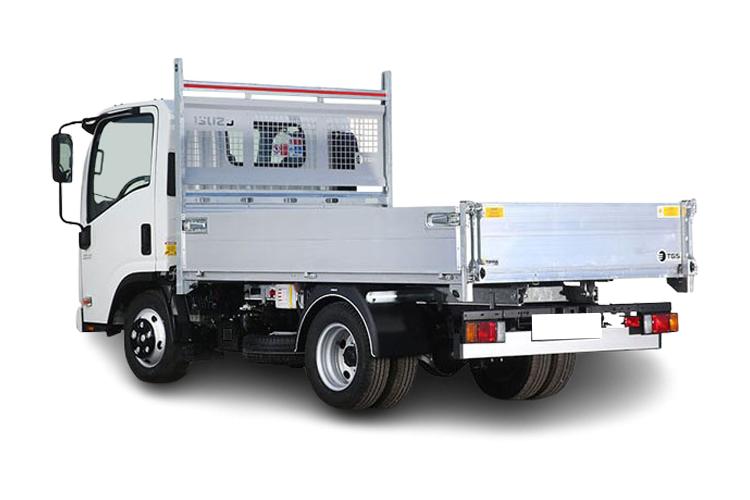

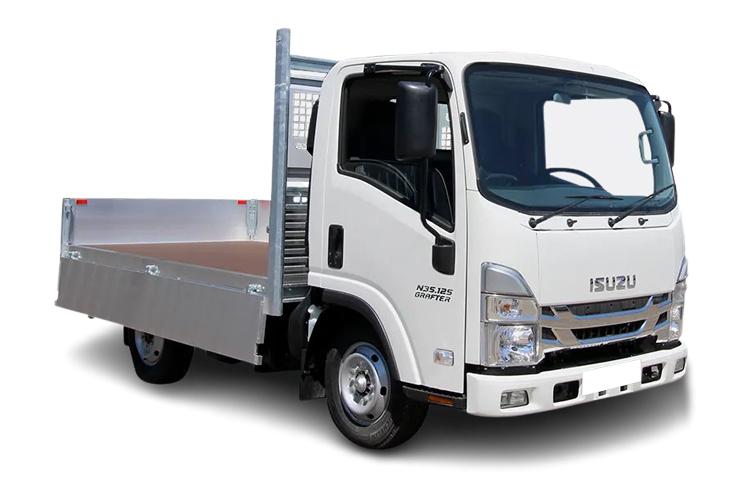

ISUZU TRUCKS N35.125T GRAFTER LWB DIESEL

Emissions - ICE

• CO
  Not Available
• HC
  Not Available
• HC+NOx
  Not Available
• Noise Level dB(A)
  Not Available
• NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  EURO 6
• WLTP - CO2 (g/km) - Comb
  275
• WLTP - CO2 (g/km) - Extra High
  314
• WLTP - CO2 (g/km) - High
  237
• WLTP - CO2 (g/km) - Low
  296
• WLTP - CO2 (g/km) - Medium
  244

Engine and Drive Train

• Automatic Transmission
  No
• Bore
  80
• Catalytic Convertor
  Yes
• CC
  1898
• Cooling System
  WATER
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Engine Layout
  NORTH SOUTH
• Engine Make
  Not Available
• Fuel Delivery
  COMMON RAIL
• Fuel Type
  DIESEL
• Gears
  6 SPEED
• Manual Transmission
  Yes
• Number of Valves
  16
• Stroke
  94.4
• Valve gear
  DOHC

Fuel Consumption - ICE

• EC
  Not Available
• EC Combined
  Not Available
• EC Extra Urban
  Not Available
• EC Urban
  Not Available
• WLTP - FC (l/100km) - Comb
  10.5
• WLTP - FC (l/100km) - Extra High
  12
• WLTP - FC (l/100km) - High
  9.1
• WLTP - FC (l/100km) - Low
  11.3
• WLTP - FC (l/100km) - Medium
  9.3
• WLTP - MPG - Comb
  26.9
• WLTP - MPG - Extra High
  23.5
• WLTP - MPG - High
  31
• WLTP - MPG - Low
  25
• WLTP - MPG - Medium
  30.4

General

• Alternator Amps
  150
• Did at least one aspect of this vehicles safety give cause for concern?
  No
• Badge Engine CC
  1.9
• Badge Power
  125
• Based On ID
  Not Available
• Battery AH
  85
• Battery Volts
  12
• Chassis Engine Number
  Not Available
• Clutch
  SINGLE DRY PLATE
• Coin Description
  Not Available
• Coin Gross Vehicle Weight Code
  Not Available
• Coin Power Output Code
  Not Available
• Coin Series
  Not Available
• Coin Wheelbase Description Code
  Not Available
• Coin Wheelbase Name Code
  Not Available
• Exhaust System
  CATALYTIC CONVERTER
• Front Brakes
  VENTILATED DISCS
• Front Suspension
  TRANSVERSE LEAF SPRING
• Generation Mark
  6
• Ghost model for valuation purposes
  No
• Hand Brake
  REAR
• Insurance Group 1
  Not Available
• Insurance Group 2
  Not Available
• NCAP Adult Occupant Protection %
  Not Available
• NCAP Child Occupant Protection %
  Not Available
• NCAP Overall Rating - Effective February 09
  Not Available
• NCAP Overall Rating - LCV
  Not Available
• NCAP Pedestrian Protection %
  Not Available
• NCAP Safety Assist %
  Not Available
• Rear Brakes
  VENTILATED DISCS
• Rear Suspension
  SEMI ELLIPTICAL LEAF SPRING
• Relative Height
  H1
• Relative Length
  L2
• Running Cost League Headings
  LARGE
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  Unlimited
• Standard manufacturers warranty - Years
  3
• Steering
  PAS RACK AND PINION
• Vehicle Homologation Class
  N1
• Vin/Frame No.
  Not Available

Performance

• BHP
  120
• Engine Power KW
  88
• Engine Power RPM
  3200
• Engine Torque LBS.FT
  236
• Engine Torque MKG
  32.6
• Engine Torque NM
  320
• Engine Torque RPM
  1600

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  No
• Automatic Clutch
  No
• Plated 3rd Axle
  Not Available
• Plated 4th Axle
  Not Available
• Space Saver?
  No
• Tyre Make
  Not Available
• Tyre Size Front
  205/75 R16
• Tyre Size Rear
  205/75 R16
• Tyre Size Spare
  FULL SIZE
• Wheel Style
  Not Available
• Wheel Type
  16" STEEL

Vehicle Dimensions

• Front Overhang
  1100
• Height
  2145
• Height (including roof rails)
  Not Available
• Length
  6080
• Load Deck Height
  Not Available
• Load Height
  Not Available
• Load Length
  Not Available
• Load Space Width Between Wheel Arches
  Not Available
• Load Width
  Not Available
• Lower Rear Door Width
  Not Available
• Rear Door Height
  Not Available
• Rear Overhang
  1620
• Side Load Door Height
  Not Available
• Side Load Door Width
  Not Available
• Upper Rear Door Width
  Not Available
• Wheelbase
  3360
• Width (excluding mirrors)
  1950

Weight and Capacities

• Boot Capacity Saloons
  Not Available
• Fuel Tank Capacity (Litres)
  68
• Gross Train Weight
  7000
• Gross Vehicle Weight
  3500
• Load Space Volume
  Not Available
• Luggage Capacity (Seats Down)
  Not Available
• Luggage Capacity (Seats Up)
  Not Available
• Luggage Capacity - 2nd Row Seats Removed
  Not Available
• Luggage Capacity - 2nd Row Seats Up
  Not Available
• Luggage Capacity - 3rd Row Seats Down
  Not Available
• Luggage Capacity - 3rd Row Seats Removed
  Not Available
• Luggage Capacity - 3rd Row Seats Up
  Not Available
• Max. Roof Load
  Not Available
• Max. Towing Weight - Braked
  3500
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  2320
• No. of Seats
  3
• Payload
  1180
• Plated 2nd Axle
  2435
• Plated Front Axle
  2100
