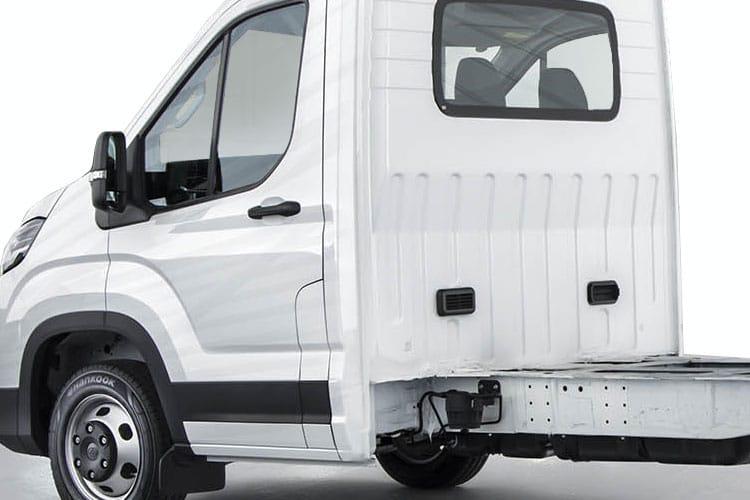

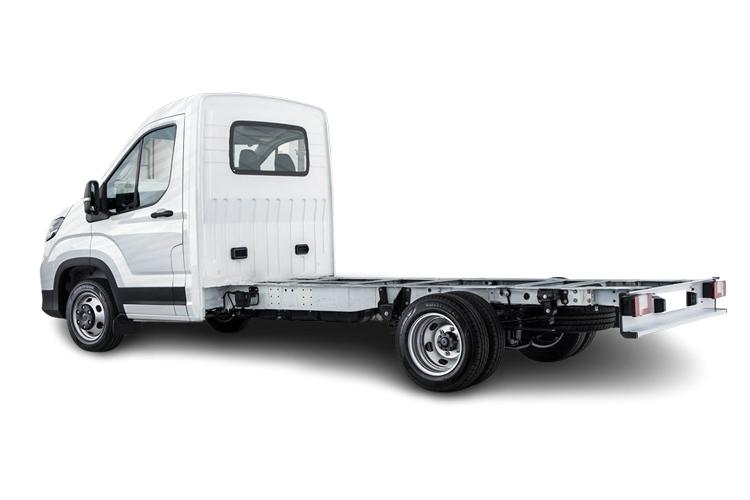

MAXUS E DELIVER 9 MWB ELECTRIC RWD

Electric Vehicle Data

• Battery Capacity % guaranteed under warranty
  70
• Battery Capacity in kWh
  100
• Battery Charging Scenario 1 - Charge Time (Mins)
  630
• Battery Charging Scenario 1 - Percentage Change
  5-100
• Battery Charging Scenario 1 - Power Supply - kW
  11
• Battery Charging Scenario 2 - Charge Time (Mins)
  59
• Battery Charging Scenario 2 - Percentage Change
  10-80
• Battery Charging Scenario 2 - Power Supply - kW
  80
• Battery Charging Scenario 3 - Charge Time (Mins)
  47
• Battery Charging Scenario 3 - Percentage Change
  10-80
• Battery Charging Scenario 3 - Power Supply - kW
  100
• Battery Charging Scenario 4 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 4 - Percentage Change
  Not Available
• Battery Charging Scenario 4 - Power Supply - kW
  Not Available
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Front
• Coupler/Connector Type
  Type 2
• Maximum Charging Rate - kW
  100
• Standard manufacturers Battery warranty - Mileage
  150000
• Standard manufacturers Battery warranty - Years
  8
• Usable Battery Capacity
  100
• WLTP - Pure Electric Range (km) - City - TEH
  273
• WLTP - Pure Electric Range (km) - City - TEL
  400
• WLTP - Pure Electric Range (km) - Comb - TEH
  196
• WLTP - Pure Electric Range (km) - Comb - TEL
  280
• WLTP - Pure Electric Range (miles) - City - TEH
  170
• WLTP - Pure Electric Range (miles) - City - TEL
  249
• WLTP - Pure Electric Range (miles) - Comb - TEH
  122
• WLTP - Pure Electric Range (miles) - Comb - TEL
  174

Emissions - ICE

• CO
  Not Available
• CO2
  0
• HC
  Not Available
• HC+NOx
  Not Available
• Noise Level dB(A)
  Not Available
• NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  Not Available

Engine and Drive Train

• Automatic Transmission
  Yes
• Bore
  Not Available
• Catalytic Convertor
  Not Available
• CC
  1
• Compression Ratio
  Not Available
• Cooling System
  Not Available
• Cylinder Layout
  Not Available
• Cylinders
  Not Available
• Engine Codes
  Not Available
• Engine Layout
  FRONT TRANSVERSE
• Engine Make
  Not Available
• Fuel Delivery
  Not Available
• Fuel Type
  ELECTRIC
• Gears
  1 SPEED
• Manual Transmission
  No
• Number of Valves
  Not Available
• Stroke
  Not Available
• Valve gear
  Not Available

Fuel Consumption - ICE

• EC
  Not Available
• EC Combined
  Not Available
• EC Extra Urban
  Not Available
• EC Urban
  Not Available

General

• Alternative Fuel Qualifying
  Yes
• Alternator Amps
  Not Available
• Did at least one aspect of this vehicles safety give cause for concern?
  No
• Badge Engine CC
  0.0
• Badge Power
  204
• Based On ID
  Not Available
• Battery AH
  Not Available
• Battery Volts
  Not Available
• Chassis Engine Number
  Not Available
• Clutch
  Not Available
• Coin Description
  Not Available
• Coin Gross Vehicle Weight Code
  Not Available
• Coin Power Output Code
  Not Available
• Coin Series
  Not Available
• Coin Wheelbase Description Code
  Not Available
• Coin Wheelbase Name Code
  Not Available
• Exhaust System
  Not Available
• Front Brakes
  DISCS
• Front Suspension
  MCPHERSON STRUT
• Generation Mark
  1
• Ghost model for valuation purposes
  No
• Hand Brake
  Not Available
• Insurance Group 1
  Not Available
• Insurance Group 2
  Not Available
• Manufacturers Corrosion Perforation Guarantee - Years
  8
• Manufacturers Paintwork Guarantee - Years
  3
• NCAP Adult Occupant Protection %
  Not Available
• NCAP Child Occupant Protection %
  Not Available
• NCAP Overall Rating - Effective February 09
  Not Available
• NCAP Overall Rating - LCV
  5 Star
• NCAP Pedestrian Protection %
  Not Available
• NCAP Safety Assist %
  Not Available
• Rear Brakes
  DISCS
• Rear Suspension
  LEAF SPRINGS
• Relative Height
  H1
• Relative Length
  L3
• Running Cost League Headings
  LARGE
• Service Interval Frequency - Months
  24
• Service Interval Mileage
  18000
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  60000
• Standard manufacturers warranty - Years
  5
• Steering
  PAS
• Timing Belt Interval Frequency - Months
  Not Available
• Timing Belt Interval Mileage
  Not Available
• Vehicle Homologation Class
  N2
• Vin/Frame No.
  Not Available

Performance

• BHP
  204
• Engine Power KW
  150
• Engine Torque LBS.FT
  243
• Engine Torque MKG
  33.7
• Engine Torque NM
  330
• Top Speed
  56

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  Not Available

Tyres

• Alloys?
  No
• Automatic Clutch
  Not Available
• Plated 3rd Axle
  Not Available
• Plated 4th Axle
  Not Available
• Space Saver?
  No
• Tyre Make
  Not Available
• Tyre Size Front
  235/65 R16
• Tyre Size Rear
  235/65 R16
• Tyre Size Spare
  FULL SIZE
• Wheel Style
  Not Available
• Wheel Type
  16" STEEL

Vehicle Dimensions

• Height
  2325
• Length
  6200
• Load Deck Height
  Not Available
• Load Height
  Not Available
• Load Length
  Not Available
• Load Space Width Between Wheel Arches
  Not Available
• Load Width
  Not Available
• Lower Rear Door Width
  Not Available
• Rear Door Height
  Not Available
• Rear Overhang
  Not Available
• Side Load Door Height
  Not Available
• Side Load Door Width
  Not Available
• Turning Circle - Kerb to Kerb
  14.1
• Upper Rear Door Width
  Not Available
• Wheelbase
  3760
• Width (excluding mirrors)
  2052

Weight and Capacities

• Boot Capacity Saloons
  Not Available
• Fuel Tank Capacity (Litres)
  Not Available
• Gross Train Weight
  6000
• Gross Vehicle Weight
  4250
• Load Space Volume
  Not Available
• Luggage Capacity (Seats Down)
  Not Available
• Luggage Capacity (Seats Up)
  Not Available
• Luggage Capacity - 2nd Row Seats Removed
  Not Available
• Luggage Capacity - 2nd Row Seats Up
  Not Available
• Luggage Capacity - 3rd Row Seats Down
  Not Available
• Luggage Capacity - 3rd Row Seats Removed
  Not Available
• Luggage Capacity - 3rd Row Seats Up
  Not Available
• Max. Roof Load
  Not Available
• Max. Towing Weight - Braked
  2000
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  2350
• No. of Seats
  3
• Payload
  1900
• Plated 2nd Axle
  2760
• Plated Front Axle
  1950
